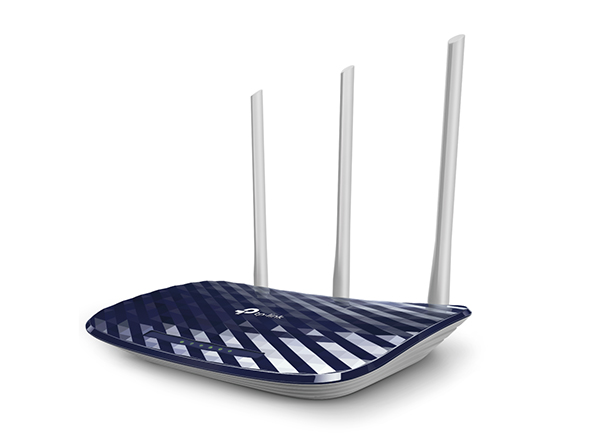

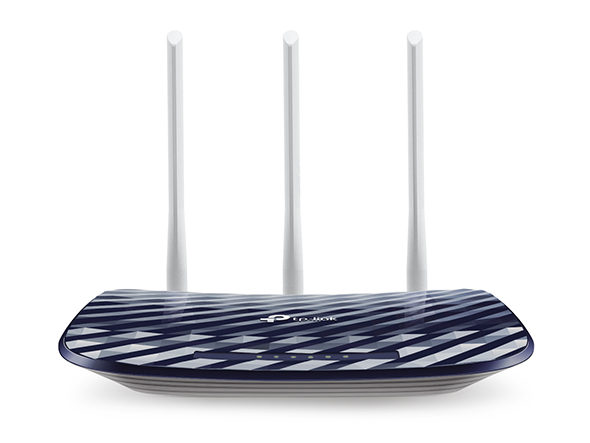

TP-Link Archer C20 750Mbps Kablosuz Dual Band Router

Teknik Özellikler

Standards and Protocols

Wi-Fi 5IEEE 802.11ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

AC7505 GHz: 433 Mbps (802.11ac)2.4 GHz: 300 Mbps (802.11n)

WiFi Range

2 Bedroom Houses3× Fixed AntennasMultiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Kapasitesi

MediumDual-BandAllocate devices to different bands for optimal performance

Working Modes

Router ModeAccess Point ModeRange Extender Mode

Network Security

SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway

Guest Network

1× 5 GHz Guest Network1× 2.4 GHz Guest Network

WiFi Encryption

WEPWPAWPA2WPA/WPA2-Enterprise (802.1x)

Processor

Single-Core CPU

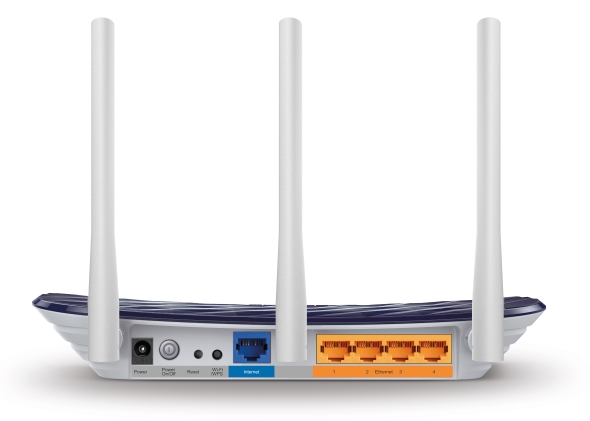

Ethernet Ports

1× 10/100 Mbps WAN Port4× 10/100 Mbps LAN Ports

Butonlar

WPS/Wi-Fi ButtonPower On/Off ButtonReset Button

Power

9 V ⎓ 0.6 A

Protocols

IPv4IPv6

EasyMesh

Mesh networking creates smooth, fast, stable roaming. Archer C20 can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.Learn More>

Parental Controls

URL FilteringTime Controls

WAN Types

Dynamic IPStatic IPPPPoEPPTPL2TP

Quality of Service

QoS by Device

Cloud Service

OTA Firmware UpgradeTP-Link IDDDNS

NAT Forwarding

Virtual ServerPort ForwardingPort TriggeringDMZUPnP

IPTV

IGMP ProxyIGMP Snooping

DHCP

Address ReservationDHCP Client ListServer

DDNS

NO-IPComexDynDNS

Management Features

Tether AppWebpageCheck Web Emulator>

Network Services Enabled by Default

Web ServerManage and configure device through web (HTTP/HTTPS)• Port: 80/443 Protocol: TCPDNSDNS• Port: 53 Protocol: TCP & UDPDHCP ServerIP address assignment (DHCP)• Port: 67 Protocol: UDPApp managementManage and configure device through app• Port: 20002 Protocol: UDPAlexa serviceDetect Alexa-enabled devices in the LAN• Port: 5353 Protocol: UDP

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access)

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

WiFi Transmission Power

CE:<20dBm(2.4GHz)<23dBm(5GHz)

WiFi Reception Sensitivity

5GHz:11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm;11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9:-62dBm2.4GHz:11g 54M: -76dBm11n; HT20 MCS7: -73dBm;11n HT40 MCS7: -71dBm

Dimensions (W×D×H)

9.1 × 5.7 × 1.4 in(230 × 144 × 35 mm)

Package Content

Wi-Fi Router Archer C20Power AdapterRJ45 Ethernet CableQuick Installation Guide
