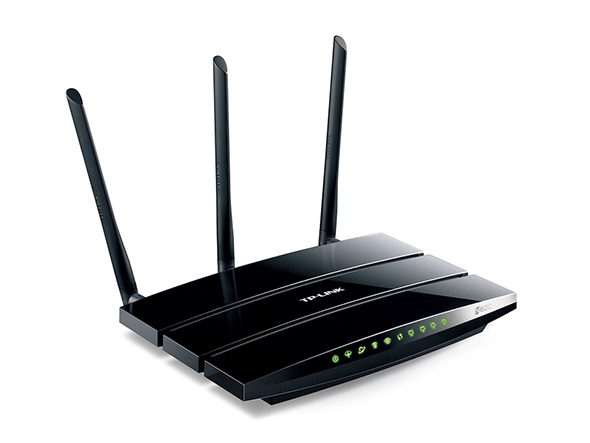

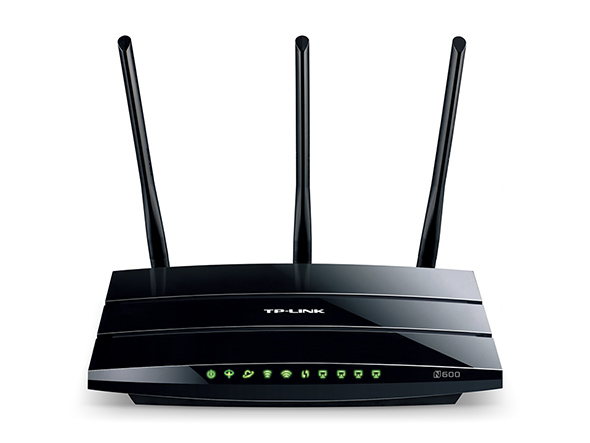

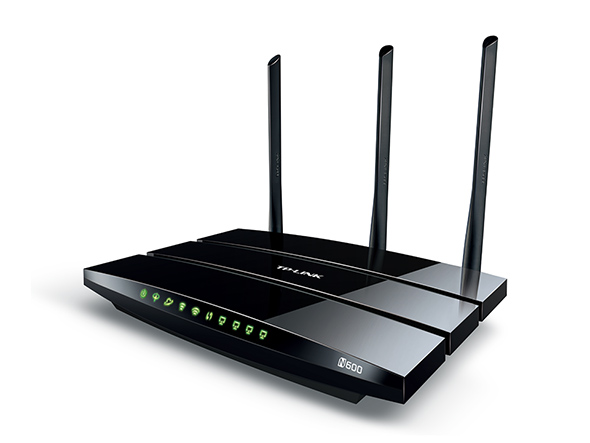

TP-Link TD-W9980 N600 Wireless Dual Band Gigabit VDSL2/ADSL2+ Modem Router

Fotoğraf: TP-Link

TP-Link

TP-Link TD-W9980 N600 Wireless Dual Band Gigabit VDSL2/ADSL2+ Modem Router

Model kodu: TD-W9980 · Modem ve Ağ

Wi-Fi Hız Sınıfı
600 Mbps
Cihaz Tipi
Modem
Wi-Fi Standardı
Wi-Fi 4
  • Up to 100Mbps Superfast Home Broadband
  • Simultaneous 2.4GHz 300Mbps and 5GHz WiFi
  • Reliable WiFi - Fully Expanded Coverage
  • USB Storage and Sharing Anytime Anywhere
  • Gigabit Wired Connections

TP-Link TD-W9980 N600 Wireless Dual Band Gigabit VDSL2/ADSL2+ Modem Router · TP-Link Anlatıyor

Featuring broadband speeds up to 100Mbps over VDSL2 and backward compatible with ADSL

Simultaneous 2.4GHz 300Mbps and 5GHz 300Mbps connections for 600Mbps of total available bandwidth

Versatile Connectivity: VDSL/ADSL or Ethernet WAN for multiple Internet connection types

2 USB ports for storage sharing, printer sharing, FTP Server and Media Server

N600 Wireless Dual Band Gigabit VDSL2/ADSL2+ Modem Router - TD-W9980

Up to 100Mbps Superfast Home Broadband

The TD-W9980 supports VDSL2 and backward compatibility with ADSL2+ /ADSL2/ADSL, featuring superfast broadband speeds of up to 100Mbps. It is the superior choice for users to enjoy a wide range of triple play services such as voice, video, data, high-definition television (HDTV) and interactive gaming. What’s more, TD-W9980 downloads movies faster than ever before and download jumbo-sized files in seconds!

Simultaneous 2.4GHz 300Mbps and 5GHz WiFi

Simultaneous dual band offers the flexibility of two dedicated networks – with multiple times the bandwidth. Simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.

Reliable WiFi - Fully Expanded Coverage

With 3 external 5dBi antennas serving the 5GHz band and 3 internal antennas serving the 2.4GHz band, combined with higher quality antenna technology, you can maintain high speeds across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.

USB Storage and Sharing Anytime Anywhere

With the two multi-functional USB 2.0 ports, you can share printers, files and media with different devices through your local network or via the FTP server while away from home. Once connected, resources are available wherever you are.

Gigabit Wired Connections

With one Gigabit LAN/WAN port and three Gigabit LAN ports, the TD-W9980 is the ideal choice for bandwidth-heavy users that rely on speedy, reliable wired connections via Ethernet cables, especially for bandwidth demanding work or entertainment.

All Kinds of Internet Connections

The TD-W9980 supports VDSL/ADSL or Ethernet WAN connections (EWAN). It provides users with the flexibility to choose between VDSL/ADSL, cable or fiber modem using its interchangeable LAN/WAN port. This unique feature makes it easier when users need to change to fiber or cable services when necessary.

Guest Network

Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network.

Easy to Use

Included in the resource CD, TP-LINK's utility can help users complete the installation and wireless network settings in just a few minutes.

IPv6 Supported

TD-W9980 supports IPv6, which is foundational to the next generation of the Internet and enables a range of new services.

Teknik Özellikler

Ek sürüm bilgisi için lütfen destek sayfasına gidin.

İncelemeler & Ödüller

PRODUCT OF THE YEAR

TD-W9980 has received award PRODUCT OF THE YEAR from Benchmark.pl.

2015, Poland

Metin ve görseller üreticinin sitesinden birebir · TP-Link'daki ürün sayfası: https://www.tp-link.com/tr/home-networking/dsl-modem-router/td-w9980/

Teknik Özellikler

Teknik Özellikler

Arabirim
4 10/100/1000Mbps RJ45 Ports1 RJ11 Port2 USB 2.0 Ports
Buton
1 Power On/Off Button1 WPS Button1 Wi-Fi On/Off Switch1 RESET Button
Harici Güç Kaynağı
12VDC/1.5A
IEEE Standartları
IEEE 802.3, 802.3u, 802.3ab
VDSL2 Standartları
ITU-T G.993.2ITU-T G.998.4 (G.INP）
ADSL Standartları
Full-rate ANSI T1.413 Issue 2ITU-T G.992.1(G.DMT)ITU-T G.994.1 (G.hs)ITU-T G.995.1
ADSL2 Standartları
ITU-T G.992.3 (G.dmt.bis)
ADSL2+ Standartları
ITU-T G.992.5
Boyutlar ( W X D X H )
9.6*6.4*1.3 in.(243 x 160.6 x 32.5mm)
Anten
Three 5GHz 5dBi detachable antennas (RP-SMA)Two 2.4GHz 3.5dBi internal antennas
Kablosuz Standartlar
IEEE 802.11a,802.11b, 802.11g, 802.11n
Frekans
2.4GHz and 5GHz
Kablosuz Güvenlik
Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSKWireless MAC Filtering
İletim Gücü
<20dBm(EIRP)
Quality of Service
WMM, Bandwidth Control (IP QoS)
Gelişmiş Özellikler
Parent ControlTraffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;Dynamic Host Configuration Protocol (DHCP), DHCP relay;Network Address Translation (NAT);PVC/Ethernet Port GroupingStatic Routing, RIP v1/v2 (optional);DNS Relay, DDNS
Güvenlik
NAT Firewall,SPI Firewall,MAC / IP / URL Filtering
IPv6
IPv6 and IPv4 dual stackSupported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
Yönetim
Web Based Configuration(HTTP),Remote management,Telnet management,Command Line Interface,SSL for TR-069,SNMP V1/V2C,Web Based Firmware Upgrade,CWMP(TR-069),Diagnostic Tools
Port Yönlendirme
Virtual server, Port Triggering, UPnP, DMZ, Manage Control
VPN Pass-Through
PPTP, L2TP, IPSec Pass-through
ATM/PPP Protokolleri
ATM Forum UNI3.1/4.0PPP over ATM (RFC 2364)PPP over Ethernet (RFC2516)IPoA (RFC1577/2225)PVC - Up to 8 PVCs
USB Paylaşım
Storage SharingFTP ServerMedia ServerPrint Server
IGMP
IGMP snooping V1/V2/V3IGMP Multicast
IPSec VPN
10 IPSec VPN TunnelsLAN-to-LANMain, Aggressive Negotiation ModeDES, 3DES, AES128, AES192, AES256 Encryption AlgorithmMD5, SHA1 Authentication AlgorithmManual, IKE Key Management ModeDead Peer Detection (DPD)Perfect Forward Secrecy (PFS)
Sertifika
CE, FCC, RoHS
Paket İçeriği
TD-W9980External SplitterRJ-11 Telephone LineRJ-45 Ethernet CableQuick Installation GuideResource CDPower Adapter
Sistem Gereksinimleri
Windows 10/8/7/Vista/XP or Mac OS or Linux-based operating system
Ortam
Operating Temperature: 0~40 (32~104)Storage Temperature: -40~70 (-40~158)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

İncelemeler & Ödüller

Ödüller
PRODUCT OF THE YEAR TD-W9980 has received award PRODUCT OF THE YEAR from Benchmark.pl. 2015, Poland

Kaynak: TP-Link ürün sayfası; tablo üreticiye aittir, olduğu gibi aktarılmıştır.
