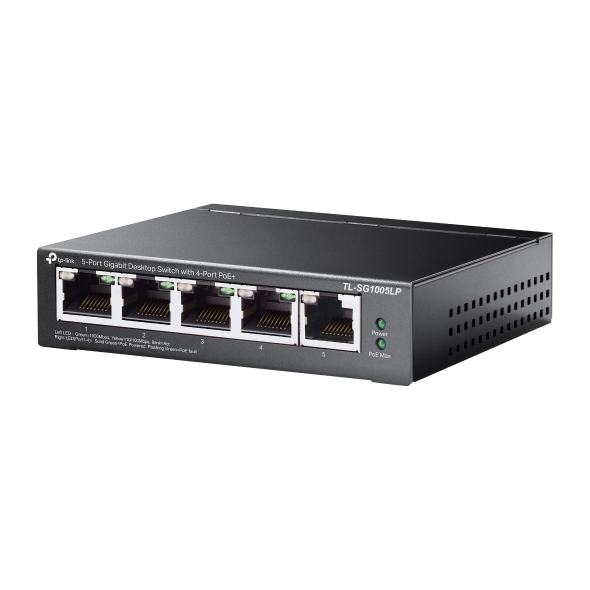

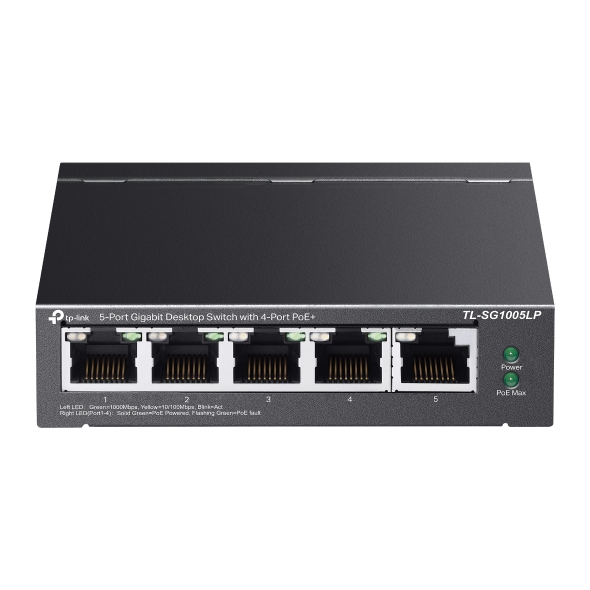

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+

Fotoğraf: TP-Link

TP-Link

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+

Model kodu: TL-SG1005LP · Modem ve Ağ

Cihaz Tipi
Switch
Port Sayısı
5
  • Power over Ethernet, Flexible Network Deployment
  • Up to 250m Transmissions
  • PoE Auto Recovery
  • Plug and Play

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+ · TP-Link Anlatıyor

4× gigabit PoE+ ports with up to 30 W PoE output per port*

Up to 250m data and power transmitting range under Extend Mode**

Automatically reboots your dropped or unresponsive PoE-powered devices.

Simply plug and play for instant connectivity with no configuration required.

Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

Learn more about TP-Link PoE technology >

Fanless Design for

Silent Operation

Power over Ethernet, Flexible Network Deployment

Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 40 W with 30 W max per PoE+ port. When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.

Up to 250m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m** —perfect for IP Camera deployment in large areas.

PoE Auto Recovery

Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.

Extend Mode

Up to 250m Transmissions

With extend mode, the PoE transmission distance reaches up to 250m** —perfect for IP Camera deployment in large areas.

Recovery Mode

PoE Auto Recovery

Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.

Plug and Play

2. Connect the Devices

IP Phone

IP Camera

Access Point

Internet

Router

Ek sürüm bilgisi için lütfen destek sayfasına gidin.

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. **The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to the power consumption of PoE-powered devices or the cable quality and type. △Numbers after different modes represent the effective ports for that mode.

Metin ve görseller üreticinin sitesinden birebir · TP-Link'daki ürün sayfası: https://www.tp-link.com/tr/business-networking/soho-switch-unmanaged/tl-sg1005lp/

Teknik Özellikler

3. Enjoy

Arabirim
• 5× 10/100/1000Mbps RJ45 Ports• AUTO Negotiation• AUTO MDI/MDIX
Ağ Medyası
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Sayısı
Fanless
Harici Güç Kaynağı
External Power Adapter (Output: 53.5 VDC / 0.81 A)
Paket Yönlendirme Hızı
7.44 Mpps
PoE Portları (RJ45)
• Standard: 802.3 af/at compliant• PoE Ports: Ports 1–4• Power Supply: 40 W
MAC Adres Tablosu
2K
Jumbo Frame
16 KB
Switching Kapasitesi
10 Gbps
Boyutlar ( W X D X H )
3.9×3.9×1.0 in (99.8×98×25 mm)
Maks. Güç Tüketimi
• 4.12 W (220/50 Hz. no PD connected)• 47.5 W (220/50 Hz. with 40 W PD connected)
Max. Heat Dissipation
• 14.05 BTU/h (no PD connected)• 161.98 BTU/h (with 40 W PD connected)
Gelişmiş Özellikler
• Extend Mode: Ports 1–2• PoE Auto Recovery: Ports 1-4• Compatible With IEEE 802.3af/at Compliant PDs• Mac Address Auto-Learning And Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping
İletim Metodu
Store-And-Forward
Sertifika
FCC, CE
Paket İçeriği
• TL-SG1005LP• Power Adapter• Installation Guide
Ortam
• Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Kaynak: TP-Link ürün sayfası; tablo üreticiye aittir, olduğu gibi aktarılmıştır.
