TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE+

5× 10/100/1000 Mbps RJ45 ports

With four PoE+ ports, transfers data and power on one single cable

Works with IEEE 802.3af/at compliant PDs

802.1p/DSCP QoS enable smooth latency-sensitive traffic

Supports PoE Power up to 30 W for each PoE port

Supports PoE Power up to 65 W for all PoE ports*

Up to 250m data and power transmitting range under Extend Mode**

PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

Plug and Play, no configuration and installation required

Learn more about TP-Link PoE technology >

Introducing TP-Link PoE Switches

Genel Bakış

Transmission

Distance

up to 250 m**

QoS for Traffic

Prioritization

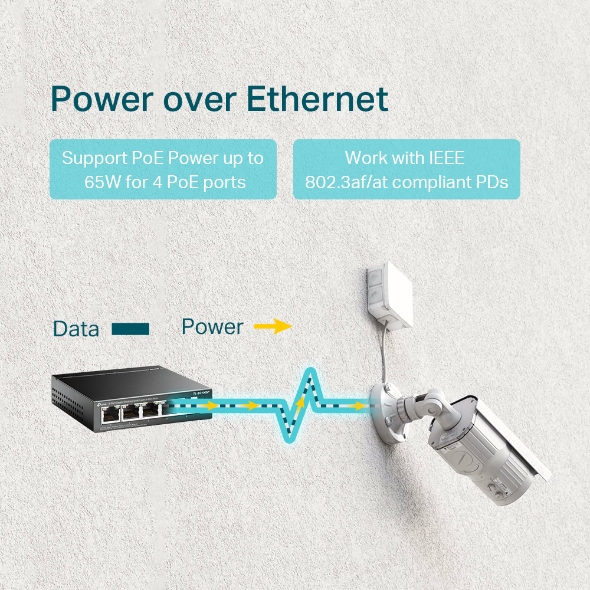

Dedicated 4-Port PoE+ Switch (65 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W

on each PoE port. The total 65 W PoE power budget* for the 4×

PoE ports opens up a wide range of applications, such as

surveillance for offices, dormitories, and small businesses. It

is fully compatible with IP cameras, access points, IP phones,

computers, printers, and more.

4 PoE+ Ports

Up to 30 W on Each Port

Total 65 W Power Budget

Ideal for IP Surveillance —Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to

250 m*—perfect for IP Camera deployment in large areas.

*The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type. Default is 10/100/1000 Mbps/port

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices,

such as cameras and APs, when they fall offline or go

unresponsive, guaranteeing the stable operation of

PoE-connected devices, without need for manual monitoring and

restart.

Intelligent Power Management

When total power consumption exceeds 65 W, the intelligent

power management will cut the lower priority port power. This

ensures the high priority port’s power supply and protects the

device from power overload. It also automatically detects and

provides the required power for your PoE devices while

protecting your PoE and non-PoE equipment from being damaged.

Advanced Functions for Higher Performance

IGMP

Snooping

Traffic Optimization

for IPTV

IGMP Snooping optimizes multimedia traffic delivery, to ensure

a better network experience especially for applications like

IPTV.

QoS: For Fluent Online Experience

Ensures smooth traffic for latency sensitive applications,

such as voice and video.

Durable Metal Casing

The interior components of TL-SG1005P

are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005P delivers switching performance you can depend on.

Teknik Özellikler

Ek sürüm bilgisi için lütfen destek sayfasına gidin.

Destek

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. **The speed of the ports which are under extend mode will be downgraded to 10Mbps. Actual transmission distance may vary from the quality of the cables.
