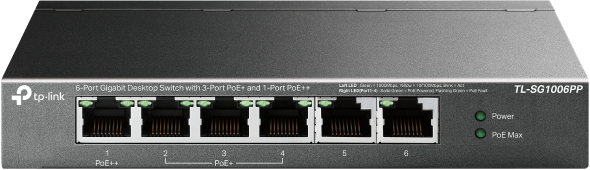

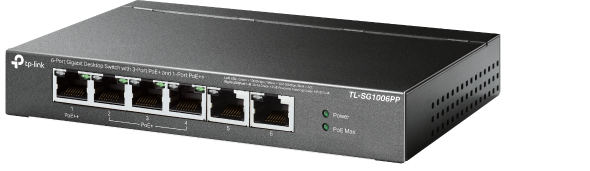

TP-Link TL-SG1006PP 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

6× 10/100/1000 Mbps RJ45 ports

With one PoE++ port and three PoE+ ports, transfers data and power on one single cable

Works with IEEE 802.3af/at/bt compliant PDs

802.1p/DSCP QoS enable smooth latency-sensitive traffic

Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port

Supports PoE Power up to 64 W for all PoE ports*

Up to 250m data and power transmitting range under Extend Mode**

PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

Plug and Play, no configuration and installation required

Learn more about TP-Link PoE technology >

Genel Bakış

Transmission

Distance

up to 250 m**

Dedicated 1 PoE++ and 3 PoE+ Ports (64 W Budget) for Numerous Applications

Port 1 complies with the 802.3af/at/bt PoE++ to supply ample

power up to 60 W, and ports 2-4 compliance with 802.3af/at PoE+

support up to 30 W on each PoE+ port. The total 64 W PoE power

budget* for all PoE ports opens up a wide range of applications,

such as surveillance for offices, dormitories, and small

businesses. It is fully compatible with IP cameras, access

points, IP phones, computers, printers, and more.

1 PoE++ Ports

3 PoE+ Ports

Total 64 W Power Budget

Ideal for IP Surveillance —Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to

250 m*—perfect for IP Camera deployment in large areas.

*The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type. Default is 10/100/1000 Mbps/port

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices,

such as cameras and APs, when they fall offline or go

unresponsive, guaranteeing the stable operation of

PoE-connected devices, without need for manual monitoring and

restart.

Intelligent Power Management

When total power consumption exceeds 64 W, the intelligent

power management will cut the lower priority port power. This

ensures the high priority port’s power supply and protects the

device from power overload. It also automatically detects and

provides the required power for your PoE devices while

protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SG1006PP are protected by

high-quality metal casing to ensure a long product life. Having

passed an array of stringent reliability tests, TL-SG1006PP

delivers switching performance you can depend on.

Teknik Özellikler

Ek sürüm bilgisi için lütfen destek sayfasına gidin.

Destek

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. **The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
