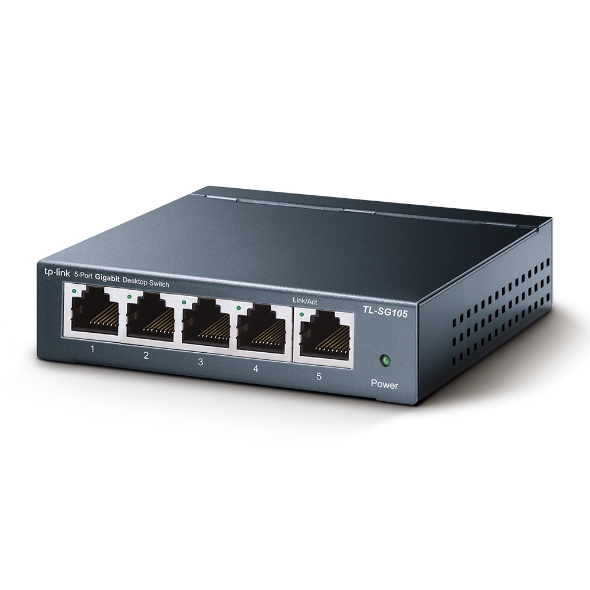

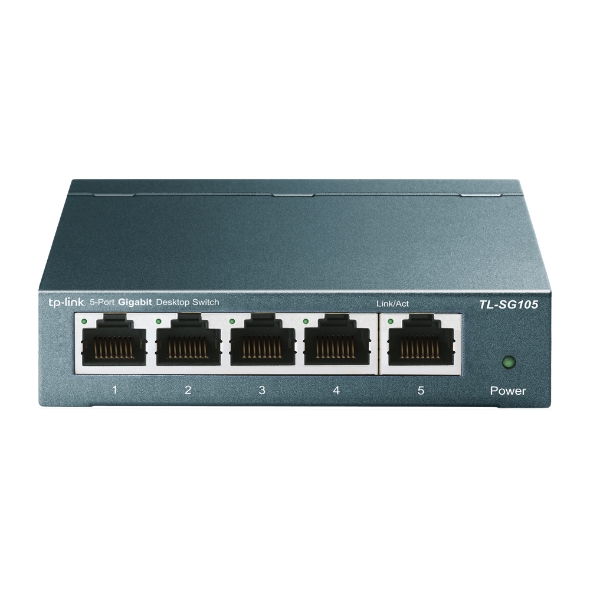

TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch

Fotoğraf: TP-Link

TP-Link

TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch

Model kodu: TL-SG105 · Modem ve Ağ

Cihaz Tipi
Switch
Port Sayısı
5
  • Conveniently Conduct Business
  • Plug and Play, No Configuration Required
  • Five Gigabit Ports for Faster Speeds
  • Value-Added Features Bring Unexpected Experiences
  • Long Product Life with Durable Metal Casing

TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch · TP-Link Anlatıyor

5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

Plug and play, no configuration needed

Supports 802.1p/DSCP QoS and IGMP Snooping functions

Durable metal casing, desktop/wall-mounting options, and a fanless design

IEEE 802.3x flow control provides reliable data transfer

Green Ethernet technology reduces power consumption

Conveniently Conduct Business

The TL-SG105 Desktop Switch provides an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG105 helps you deal with your business quickly and easily, any time.

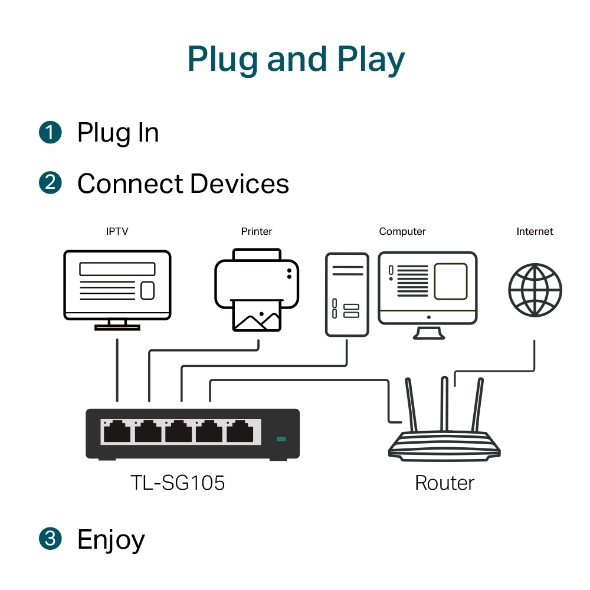

Plug and Play, No Configuration Required

A plug-and-play design makes for easy deployment, no technician needed. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts to ensure full compatibility and optimal performance.

(2) Connect Devices

IPTV

Printer

Computer

Internet

Five Gigabit Ports for Faster Speeds

Increase the speed of your network with the TL-SG105 5-port Gigabit desktop switch. 5 non-blocking 10/100/1000 Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

Value-Added Features Bring Unexpected Experiences

QoS for a Lag-Free Experience

Ensures smooth traffic for latency sensitive applications, such as voice and video

IGMP Snooping for Multicast Optimization

Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

Long Product Life with Durable Metal Casing

Interior components of TL-SG105 are protected by high-quality metal casing to ensure a product longevity. Having passed an array of stringent reliability tests, TL-SG105 delivers switching performance you can depend on.

Compact Desktop Design

Wall-Mounting

Fanless Design

High-quality metal

25mm

100mm

98mm

Go Green with Your Ethernet

TP-Link’s latest generation of Unmanaged Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint.

Teknik Özellikler

Ek sürüm bilgisi için lütfen destek sayfasına gidin.

Metin ve görseller üreticinin sitesinden birebir · TP-Link'daki ürün sayfası: https://www.tp-link.com/tr/business-networking/soho-switch-unmanaged/tl-sg105/

Teknik Özellikler

Teknik Özellikler

Standartlar ve Protokoller
IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Arabirim
5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Sayısı
Fanless
Harici Güç Kaynağı
External Power Adapter (Output: 5 V DC / 0.6A)
LED
System PowerLink/Act indicators per port built into each RJ-45 port
Boyutlar ( W X D X H )
3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Maks. Güç Tüketimi
2.3 W (220 V/ 50 Hz)
Max. Heat Dissipation
7.83 BTU/h
Paket Buffer Belleği
1 Mb
Jumbo Frame
16 KB
Paket Yönlendirme Hızı
7.4 Mpps
MAC Adres Tablosu
2K
Gelişmiş Özellikler
Green Technology802.3X Flow Control802.1P/DSCP QoS (for V2 and later version)IGMP Snooping
İletim Metodu
Store and Forward
Sertifika
CE, FCC
Paket İçeriği
5-Port 10/100/1000Mbps Desktop SwitchPower AdapterInstallation Guide
Ortam
Operating Temperature: 0–40 °C (32–104 °F)Storage Temperature: -40–70 °C (-40–158 °F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing

Kaynak: TP-Link ürün sayfası; tablo üreticiye aittir, olduğu gibi aktarılmıştır.
