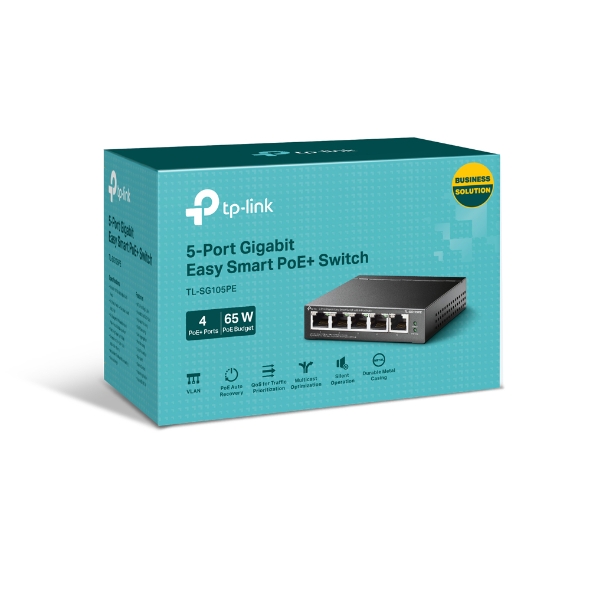

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

Five 10/100/1000Mbps RJ45 ports

Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable

Supports PoE power up to 65 W for all PoE ports*

Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery

Simple network set-up on top of plug-and-play connectivity

Web-based user interface and Easy Smart Configuration Utility simplify configuration

Fanless design lowers energy consumption and eliminates operating noise

Learn more about TP-LINK PoE technology >

Introducing TP-Link PoE Switches

Professional 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

Easy to Use, Multi-Purpose PoE Switch with Powerful Performance

-

QoS for Traffic Prioritization

Multiple Application Scenarios

The TL-SG105PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

Surveillance: Works with IP Cameras

Conference Call: Works with IP Phones

Wi-Fi Coverage: Works with Omada EAPs

Wired Connections: Works with PCs and Printers

Dedicated 4 PoE+ Ports (65 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 4× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

4× Gigabit PoE+ Ports

Up to 30 W on Each Port

Total 65 W Power Budget*

Value-Added Features Bring Unexpected Experiences

QoS for a Lag-Free Experience

Ensures smooth traffic for latency-sensitive applications, such as voice and video

IGMP Snooping for Multicast Optimization

Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

VLAN for Security

Helps to create network with higher security and better overall performance by dividing network into smaller groups

Management Utility: User Interface

Making Management Easy

TL-SG105PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Multiple Features Guarantee Stable Operation

IP Camera

IP Camera

PoE

Auto

Recovery

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Power overload

65 W

Intelligent power supply

65 W

Power Management

Intelligent Power Management to Prevent Power Overload

Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 65 W. This protects the device from power overload operation.

PoE Devices

Non-PoE Devices

IP Camera

IP Phone

Access Point

Computer

Printer

NAS

Network Video Recorder

Router

Great Compatibility with PD Detection

Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SG105PE are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG105PE delivers switching performance you can depend on.

İlgili Caseler

East European Comic Con

TP-Link Provides Internet Access for East European Comic Con for the Fourth Year Running

Daha Fazlasını Öğrenin

East European Comic Con

TP-Link Provides Internet Access for East European Comic Con for the Fourth Year Running

“TP-Link Romania have provided a high-quality service and the right equipment to meet our requirements in each of the projects we have worked on together. EECC2017 was their toughest challenge so far and they passed with flying colors.”

—Marius Radu, EECC Gaming Director

Daha Fazlasını Öğrenin

Teknik Özellikler

Ek sürüm bilgisi için lütfen destek sayfasına gidin.

Destek

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
