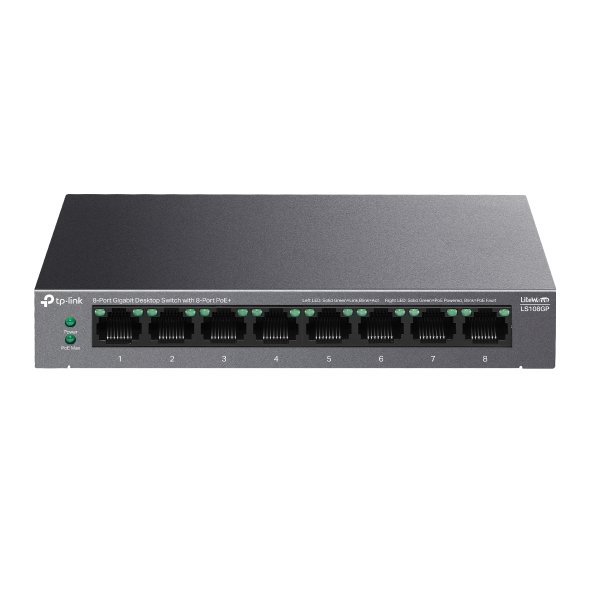

TP-Link LS108GP 8-Port Gigabit Desktop Switch with 8-Port PoE+

Fotoğraf: TP-Link

TP-Link

TP-Link LS108GP 8-Port Gigabit Desktop Switch with 8-Port PoE+

Model kodu: LS108GP · Modem ve Ağ

Cihaz Tipi
Switch
Port Sayısı
8
  • Power over Ethernet, Flexible Network Deployment
  • Up to 250m Transmissions
  • PoE Auto Recovery
  • Plug and Play

TP-Link LS108GP 8-Port Gigabit Desktop Switch with 8-Port PoE+ · TP-Link Anlatıyor

Full Gigabit Ports: Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity.

62 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*

Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**

PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.

Plug and Play: Simply plug and play for instant connectivity with no configuration required.

Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Learn more about TP-Link PoE technology >

Power over Ethernet, Flexible Network Deployment

Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 62 W with 30 W max per PoE+ port. When total power consumption exceeds 62 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.

Up to 250m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m** —perfect for IP Camera deployment in large areas.

PoE Auto Recovery

Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.

Extend Mode

Up to 250m Transmissions

With extend mode, the PoE transmission distance reaches up to 250m** —perfect for IP Camera deployment in large areas.

Recovery Mode

PoE Auto Recovery

Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.

Plug and Play

2. Connect the Devices

IP Phone

IP Camera

Access Point

Internet

Router

Ek sürüm bilgisi için lütfen destek sayfasına gidin.

*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. **The speed of the ports which are under extend mode will be downgraded to 10Mbps. Actual transmission distance may vary from the quality of the cables. △Numbers after different modes represent the effective ports for that mode.

Metin ve görseller üreticinin sitesinden birebir · TP-Link'daki ürün sayfası: https://www.tp-link.com/tr/business-networking/soho-switch-unmanaged/ls108gp/

Teknik Özellikler

3. Enjoy

Arabirim
• 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+)• AUTO Negotiation• AUTO MDI/MDIX
Ağ Medyası
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan Sayısı
Fanless
Kurulum
• Desktop• Wall Mounting
Güç Kaynağı
External Power Adapter (Output: 53.5 VDC / 1.31 A)
PoE Portları (RJ45)
• Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8, up to 30 W PoE output per port• PoE Budget: 62 W
Boyutlar ( W X D X H )
6.2×3.9×1.0 in (158×99×25 mm)
Maks. Güç Tüketimi
• 5.53 W (220 V/50 Hz. no PD connected)• 71.61 W (220 V/50 Hz. with 62 W PD connected)
Max. Heat Dissipation
• 18.81 BTU/h (220 V/50 Hz. no PD connected)• 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected)
Jumbo Frame
16 KB
Anahtarlama Kapasitesi
16 Gbps
Paket Yönlendirme Hızı
11.9 Mpps
MAC Adres Tablosu
4K
Gelişmiş Özellikler
• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery Button (Ports 1-8)• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping• Green Technology
İletim Metodu
Store-And-Forward
Sertifika
FCC, CE
Paket İçeriği
• LS108GP• Power Adapter• Installation Guide
Ortam
• Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Kaynak: TP-Link ürün sayfası; tablo üreticiye aittir, olduğu gibi aktarılmıştır.
