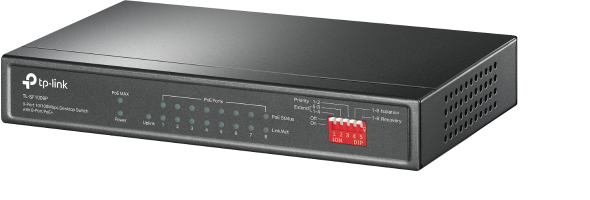

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

8× PoE+ ports transfer data and power on individual cables

Works with IEEE 802.3af/at compliant PDs

Supports PoE Power up to 30 W for each PoE port

Supports PoE Power up to 65 W for 8 PoE ports*

Up to 250 m data and power transmitting range under Extend Mode**

Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

Isolation Mode allows one-click client traffic separation for higher security and performance

PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.

Plug and play with no configuration required

Learn more about TP-Link PoE technology >

Introducing TP-Link PoE Switches

Genel Bakış

Transmission Distance

up to 250 m**

Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W

on each PoE port. The total 65 W PoE power budget* for the 8×

PoE+ ports opens up a wide range of applications, such as

surveillance for offices, dormitories, and small businesses. It

is fully compatible with IP cameras, access points, IP phones,

computers, printers, and more.

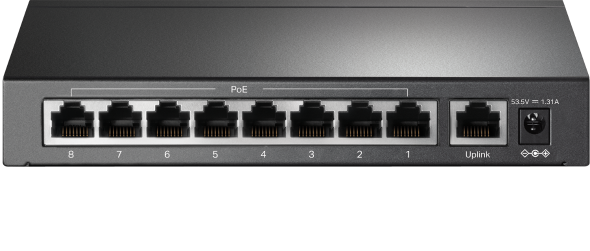

8 PoE+ Ports

Up to 30 W on Each Port

Total 65 W Power Budget

Ideal for IP Surveillance —Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to

250 m*—perfect for IP Camera deployment in large areas.

*The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Ideal for IP Surveillance —Higher Performance and Security

Priority Mode

Button

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in

critical business areas is guaranteed by offering higher

priority options for ports 1–2 when one-touch Priority Mode

is on.

Isolation Mode

Button

One-Click Traffic Separation for Ports 1-8

With one click, Isolation Mode easily divides traffic for

ports 1–8 to avoid snooping and tampering. This enables the

switch to isolate broadcast storm, improving LAN security

and data transmission.

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices,

such as cameras and APs, when they fall offline or go

unresponsive, guaranteeing the stable operation of

PoE-connected devices, without need for manual monitoring and

restart.

Intelligent Power Management

When total power consumption exceeds 65 W, the intelligent

power management will cut the lower priority port power. This

ensures the high priority port’s power supply and protects the

device from power overload. It also automatically detects and

provides the required power for your PoE devices while

protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SF1009P are protected by

high-quality metal casing to ensure a long product life. Having

passed an array of stringent reliability tests, TL-SF1009P

delivers switching performance you can depend on.

Teknik Özellikler

Ek sürüm bilgisi için lütfen destek sayfasına gidin.

Destek

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. **The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
