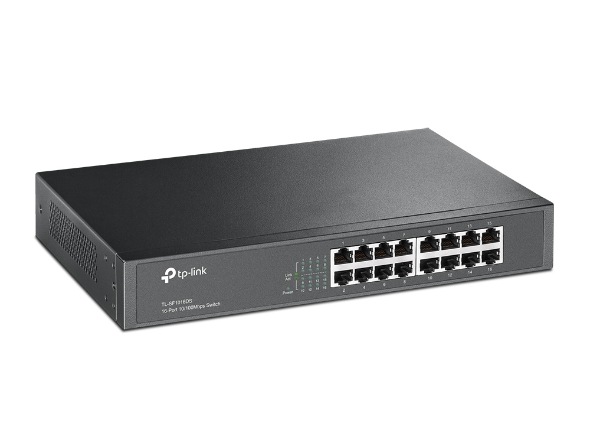

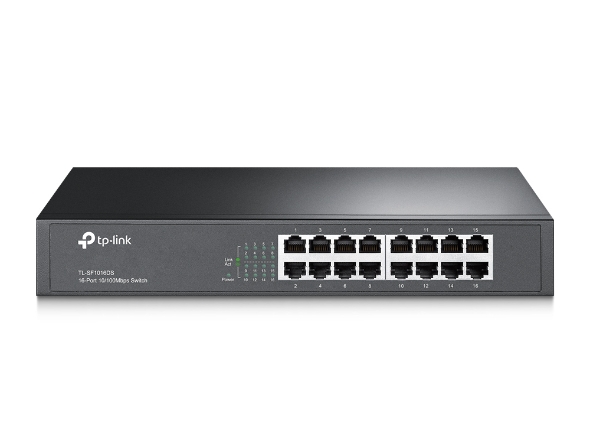

TP-Link TL-SF1016DS 16-Port 10/100Mbps Desktop/Rackmount Switch

Fotoğraf: TP-Link

TP-Link

TP-Link TL-SF1016DS 16-Port 10/100Mbps Desktop/Rackmount Switch

Model kodu: TL-SF1016DS · Modem ve Ağ

Cihaz Tipi
Switch
Port Sayısı
16
  • What This Product Does
  • TP-LINK Green Technology
  • High Performance
  • Easy to Use
  • Teknik Özellikler

TP-Link TL-SF1016DS 16-Port 10/100Mbps Desktop/Rackmount Switch · TP-Link Anlatıyor

Green Ethernet technology saves power consumption

Supports MAC address self-learning and auto MDI/MDIX.

What This Product Does

The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save the power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology

This new generation The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.

High Performance

The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.

Easy to Use

The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.

Teknik Özellikler

Ek sürüm bilgisi için lütfen destek sayfasına gidin.

Metin ve görseller üreticinin sitesinden birebir · TP-Link'daki ürün sayfası: https://www.tp-link.com/tr/business-networking/soho-switch-unmanaged/tl-sf1016ds/

Teknik Özellikler

Teknik Özellikler

Standartlar ve Protokoller
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Arabirim
16 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Ağ Medyası
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
Fan Sayısı
Fanless
Fiziksel Güvenlik Kilidi
Yes
Güç Kaynağı
100-240VAC, 50/60Hz
Boyutlar ( W X D X H )
11.6×7.1×1.7 in. (294×180×44 mm)
Montaj
Rack Mountable
Maks. Güç Tüketimi
2.06W(220V/50Hz)
Max. Heat Dissipation
7.03BTU/h
Advanced Features
Green Technology802.3X Flow Control
Transfer Metodu
Store-and-Forward
Anahtarlama Kapasitesi
3.2Gbps
Buffer Bellek
2Mb
Paket Yönlendirme Hızı
2.38Mpps
MAC Adres Tablosu
8K
Sertifika
FCC, CE
Paket İçeriği
16-Port 10/100Mbps Desktop/Rackmount SwitchPower CordInstallation GuideRackmount KitRubber Feet
Ortam
Operating Temperature: 0℃~40℃ (32℉~104℉);Storage Temperature: -40℃~70℃ (-40℉~158℉);Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

Kaynak: TP-Link ürün sayfası; tablo üreticiye aittir, olduğu gibi aktarılmıştır.
