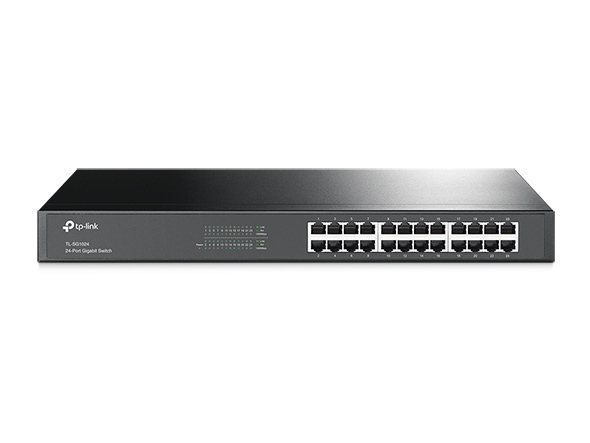

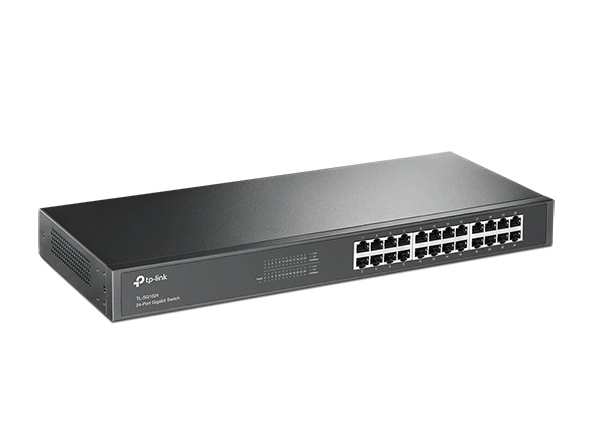

TP-Link TL-SG1024 24-Port Gigabit Rackmount Switch

Fotoğraf: TP-Link

TP-Link

TP-Link TL-SG1024 24-Port Gigabit Rackmount Switch

Model kodu: TL-SG1024 · Modem ve Ağ

Cihaz Tipi
Switch
Port Sayısı
24
  • What This Product Does
  • TP-Link Green Technology
  • High Performance
  • Ease of Use
  • Teknik Özellikler

TP-Link TL-SG1024 24-Port Gigabit Rackmount Switch · TP-Link Anlatıyor

Innovative energy-efficient technology saves power consumption

Supports MAC address self-learning and auto MDI/MDIX

Standard 19-inch rack-mountable steel case

What This Product Does

The TL-SG1024 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024 can save power consumption, making it an eco-friendly solution for your business network.

TP-Link Green Technology

This new generation TL-SG1024 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, most of the packaging material can be recycled.

High Performance

All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1024 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Ease of Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Teknik Özellikler

Ek sürüm bilgisi için lütfen destek sayfasına gidin.

Metin ve görseller üreticinin sitesinden birebir · TP-Link'daki ürün sayfası: https://www.tp-link.com/tr/business-networking/soho-switch-unmanaged/tl-sg1024/

Teknik Özellikler

Teknik Özellikler

Standartlar ve Protokoller
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Arabirim
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Ağ Medyası
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Sayısı
Fanless
Fiziksel Güvenlik Kilidi
No
Güç Kaynağı
100-240VAC, 50/60Hz
Boyutlar ( W X D X H )
17.3*7.1*1.7 in. (440*180*44 mm)
Montaj
Rack Mountable
Maks. Güç Tüketimi
13.62W
Max. Heat Dissipation
46.44BTU/h
Jumbo Frame
10KB
QoS
802.1p/DSCP QoS**Only for V11 and later version
Yeşil Teknoloji
Yes
Transfer Metodu
Store-and-Forward
Anahtarlama Kapasitesi
48Gbps
Paket Yönlendirme Hızı
35.7Mpps
MAC Adres Tablosu
8K
Sertifika
FCC, CE
Paket İçeriği
24-Port Gigabit Rackmount SwitchPower CordInstallation GuideRackmount KitsRubber Feet
Ortam
Operating Temperature: 0℃~40℃ (32℉~104℉);Storage Temperature: -40℃~70℃ (-40℉~158℉);Operating Humidity: 10%~90% non-condensing;Storage Humidity: 5%~90% non-condensing

Kaynak: TP-Link ürün sayfası; tablo üreticiye aittir, olduğu gibi aktarılmıştır.
