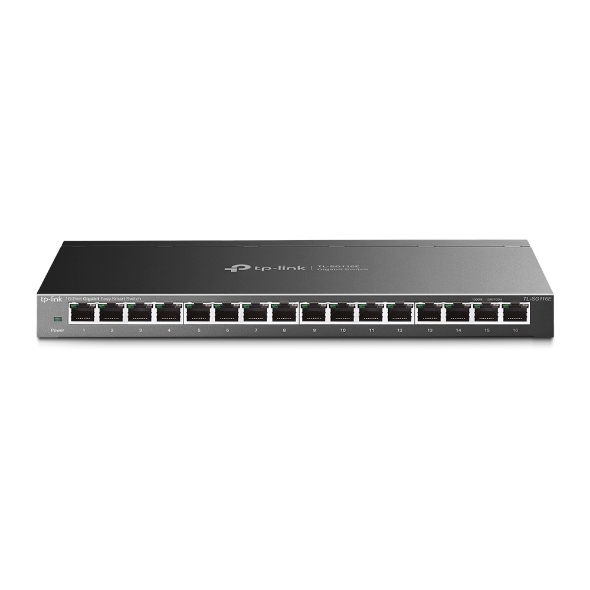

TP-Link TL-SG116E 16-Port Gigabit Easy Smart Switch

Fotoğraf: TP-Link

TP-Link

TP-Link TL-SG116E 16-Port Gigabit Easy Smart Switch

Model kodu: TL-SG116E · Modem ve Ağ

Cihaz Tipi
Switch
Port Sayısı
16
  • Increase Your Network Speed and Save Energy
  • Link Your Devices, Create Convenient Business
  • Easy to Use
  • Gigabit Ports for Maximum Speed
  • More Features,More Choices

TP-Link TL-SG116E 16-Port Gigabit Easy Smart Switch · TP-Link Anlatıyor

Plug and play, with no configuration required

Durable metal casing of superior quality and professional appearance

Intelligent management via a web user interface and downloadable utility

Green technology reduces power consumption

Increase Your Network Speed and Save Energy

16-Port Gigabit Desktop Switch

Link Your Devices, Create Convenient Business

The 16-Port Gigabit Easy Smart Desktop Switch provides an easy way to expand your wired network. Deal

with your business quickly and easily, whether you are at home or in the office.

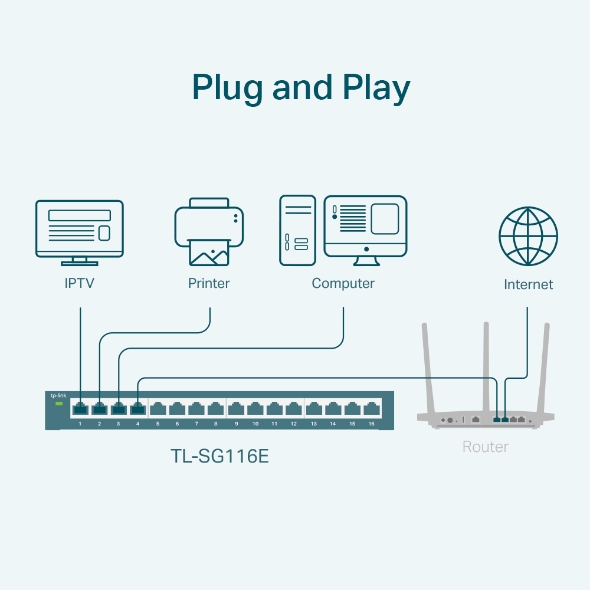

Easy to Use

2Connect The Devices

IPTV

Printer

Computer

Internet

Router

Gigabit Ports for Maximum Speed

16 non-blocking 10/100/1,000 Mbps ports make it possible to transfer large, bandwidth-intensive files with no interference.

More Features,More Choices

QoS for a Lag-Free Experience

Ensures smooth traffic for latency sensitive applications, such as voice and video

IGMP Snooping for Multicast Optimization

Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

VLAN for Security

Helps to create network with higher security and better overall performance by dividing network into smaller groups

Management Made Easy

TL-SG116E offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG116E offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Management Utility: User Interface

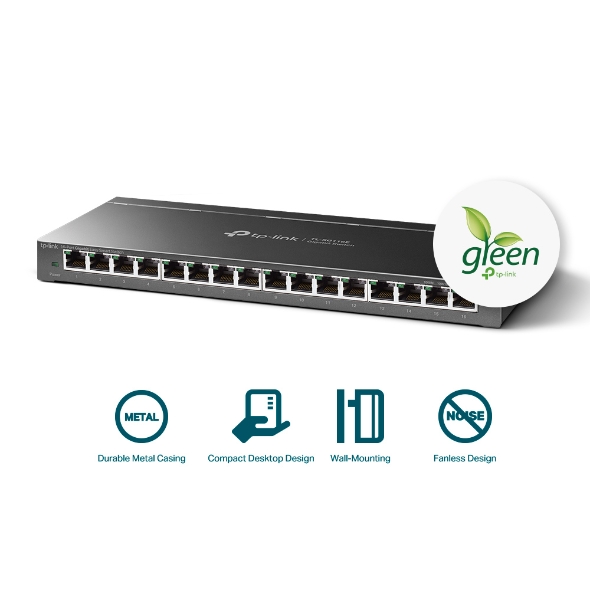

Durable Metal Casing

The interior components of TL-SG116E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116E delivers switching performance you can depend on.

Compact Desktop Design

Wall-Mounting

Fanless Design

High-quality metal

25.4mm

286mm

111.7mm

Go Green with Your Ethernet

TP-Link’s latest generation of Easy Smart Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Teknik Özellikler

Ek sürüm bilgisi için lütfen destek sayfasına gidin.

Metin ve görseller üreticinin sitesinden birebir · TP-Link'daki ürün sayfası: https://www.tp-link.com/tr/business-networking/soho-switch-easy-smart/tl-sg116e/

Teknik Özellikler

Teknik Özellikler

Standartlar ve Protokoller
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Arabirim
16 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX
Ağ Medyası
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)
Fan Sayısı
Fanless
Güç Kaynağı
External Power Adapter(Output: 12VDC/1.0A)
Boyutlar ( W X D X H )
11.3 × 4.4 × 1.0 in. (286 × 111.7 × 25.4 mm)
Maks. Güç Tüketimi
9.19W(220V/50Hz)
Max. Heat Dissipation
31.36BTU/h
Paket Buffer Belleği
4.1Mb
Jumbo Frame
9KB
Anahtarlama Kapasitesi
32Gbps
Paket Yönlendirme Hızı
23.81Mpps
MAC Adres Tablosu
8K
Quality of Service
Support Port-based/802.1p/DSCP prioritySupport 4 priority queuesRate LimitStorm Control
L2 Özellikleri
IGMP Snooping V1/V2/V3Static Link AggregationPort MirroringCable DiagnosticsLoop Prevention
VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)MTU/Port/Tag VLAN
İletim Metodu
Store-And-Forward
Sertifika
FCC, CE
Paket İçeriği
TL-SG116EPower CordInstallation GuideRubber Feet
Sistem Gereksinimleri
Microsoft® Windows® for running Utility
Ortam
Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

Kaynak: TP-Link ürün sayfası; tablo üreticiye aittir, olduğu gibi aktarılmıştır.
