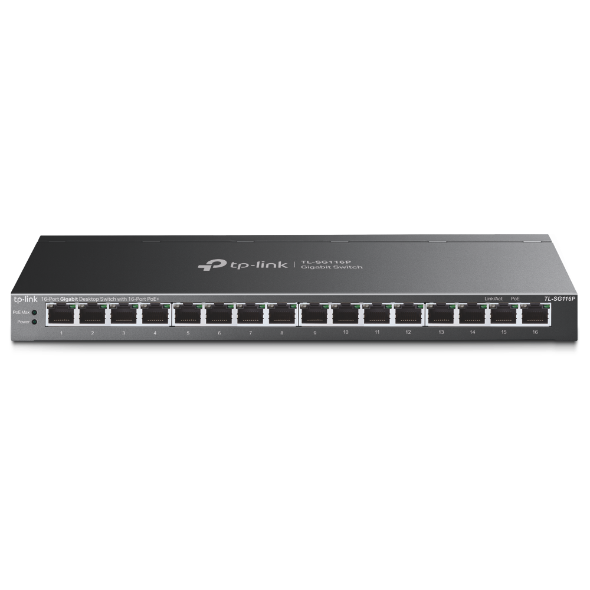

TP-Link TL-SG116P 16-Port Gigabit Desktop Switch with 16-Port PoE+

16× 10/100/1000 Mbps RJ45 ports

With 16 PoE+ ports, transfers data and power on one single cable

Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port

Supports PoE Power up to 120 W for all PoE ports*

Up to 250 m data and power transmission range under Extend Mode**

Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications

Isolation Mode allows one-click client traffic separation for higher security and performance

Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery

Plug and play with no configuration required

Learn more about TP-Link PoE technology >

Genel Bakış

Transmission Distance up to

250 m**

Dedicated 16 PoE+ Ports (120 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W

on each PoE port. The total 120 W PoE power budget* for the 16×

PoE+ ports opens up a wide range of applications, such as

surveillance for offices, dormitories, and small businesses. It

is fully compatible with IP cameras, access points, IP phones,

computers, printers, and more.

16 PoE+ Ports

Up to 30 W on Each Port

Total 120 W Power Budget

Ideal for IP Surveillance —Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to

250 m*—perfect for IP Camera deployment in large areas.

*The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type. ** In actual use, at least one port will be used to connect to NVR or Router device. Default is 10/100/1000 Mbps/port

Keep Your Network Smooth and Safe with Port Prioritization and Separation

Priority Mode

Button

High

Low

Port Prioritization

Guarantees the quality of sensitive applications like video

and voice in critical business areas by prioritizing the

data of ports 1-4.

Isolation Mode

Button

Enhanced with Port Isolation

Isolation Mode easily divides traffic for ports 1-7 or 8-14

to avoid snooping/tampering and isolates broadcast storm for

higher security.

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices,

such as cameras and APs, when they fall offline or go

unresponsive, guaranteeing the stable operation of

PoE-connected devices, without need for manual monitoring and

restart.

Intelligent Power Management

When total power consumption exceeds 120 W, the intelligent

power management will cut the lower priority port power. This

ensures the high priority port’s power supply and protects the

device from power overload. It also automatically detects and

provides the required power for your PoE devices while

protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SG116P are protected by

high-quality metal casing to ensure a long product life. Having

passed an array of stringent reliability tests, TL-SG116P

delivers switching performance you can depend on.

Teknik Özellikler

Ek sürüm bilgisi için lütfen destek sayfasına gidin.

Destek

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. **The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
