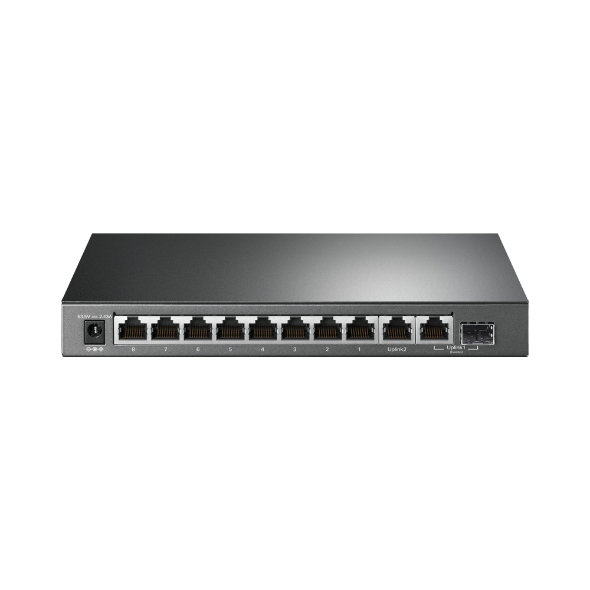

TP-Link TL-SG1210MP 10-Port Gigabit Desktop Switch with 8-Port PoE+

9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port

8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*

Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port

Up to 250 m data and power transmission range under Extend Mode**

Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications

Isolation Mode allows one-click client traffic separation for higher security and performance

Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.

Plug and play with no configuration required

Fanless design reduces power consumption and works silently in its location

Learn more about TP-Link PoE technology >

Introducing TP-Link PoE Switches

Professional 10-Port Gigabit Unmanaged Switch with 8-Port PoE+

Plug and Play, with PoE Transmission for Surveillance up to 250 m

Transmission Distance up to 250 m**

Dedicated 8 PoE+ Ports (123 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

8 PoE+ Ports

Up to 30 W on Each Port

Total 123 W Power Budget

Ideal for IP Surveillance —Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m*—perfect for IP Camera deployment in large areas.

*The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Keep Your Network Smooth and Safe with Port Prioritization and Separation

Priority Mode Button

Low

Hight

Port Prioritization

Guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports 1-2.

Isolation Mode Button

Enhanced with Port Isolation

Isolation Mode easily divides traffic for ports 1-4 or 5-8 to avoid snooping/tampering and isolates broadcast storm for higher security.

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Intelligent Power Management

When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SG1210MP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1210MP delivers switching performance you can depend on.

Teknik Özellikler

Ek sürüm bilgisi için lütfen destek sayfasına gidin.

Destek

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
