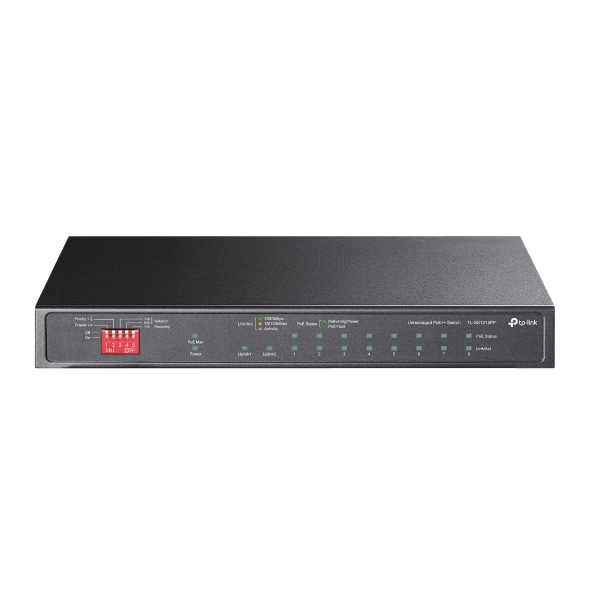

TP-Link TL-SG1210PP 10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++

9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port

With 2× PoE++ ports and 6× PoE+ ports, transfers data and power on one single cable

Works with IEEE 802.3af/at/bt compliant PDs

802.1p/DSCP QoS enable smooth latency-sensitive traffic

Supports PoE Power up to 30 W for each PoE+ port and 60 W for PoE++ port

Supports PoE Power up to 123 W for all PoE ports*

Plug and Play, no configuration and installation required

Up to 250m data and power transmitting range under Extend Mode**

PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

Isolation Mode allows one-click client traffic separation for higher security and performance

Priority Mode guarantees the quality of sensitive applications like video monitoring in critical business areas by prioritizing the data of ports 1-2

Learn more about TP-Link PoE technology >

Power over Ethernet, Flexible Network Deployment

Compliant with the IEEE 802.3af/at/bt PoE standards, the switch supports a total PoE power budget of 123 W with 30 W max per PoE+ port and 60 W max per Poe++ port. When total power consumption exceeds 123 W, the intelligent power managerment will cut the lower priority ports power to protect devices from damage.

Instantaneous Multi-mode Toggles △

Extend Mode

Up to 250m Transmissions

With extend mode, the PoE transmission distance reaches up to 250m** —perfect for IP Camera deployment in large areas.

Priority Mode

One-click Port Priority

Priority mode guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports.

Isolation Mode

Traffic Separation for Security

Isolation Mode easily divides traffic for ports to avoid snooping/tampering and isolates broadcast storm for higher security.

Recovery Mode

PoE Auto Recovery

Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.

Plug and Play

2. Connect the Devices

IP Phone

IP Camera

Access Point

Internet

Router

Ek sürüm bilgisi için lütfen destek sayfasına gidin.

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. **The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type. △ N umbers after different modes represent the effective ports for that mode.
