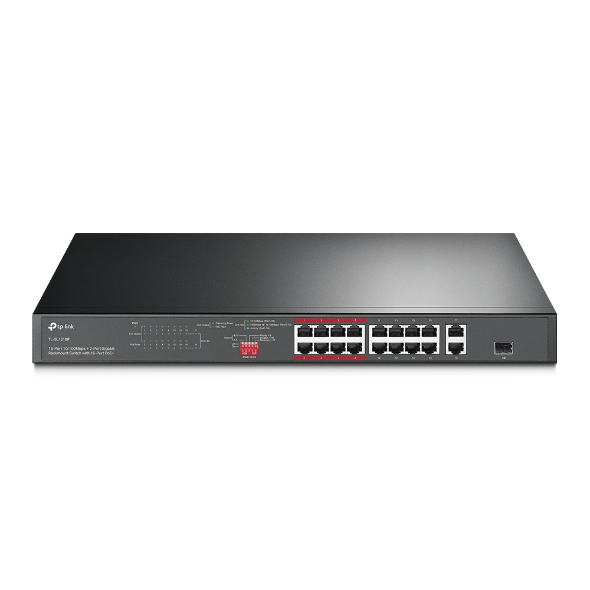

TP-Link TL-SL1218P 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+

16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot.

High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports.*

Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**

Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.

Isolation Mode allows one-click client traffic separation for higher security and performance.

PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.

Easy to use, with no configuration and installation needed.

Learn more about TP-Link PoE technology >

Introducing TP-Link PoE Switches

Genel Bakış

Transmission Distance up to 250 m**

: One-Click Traffic Separation

: Intelligent Power Management

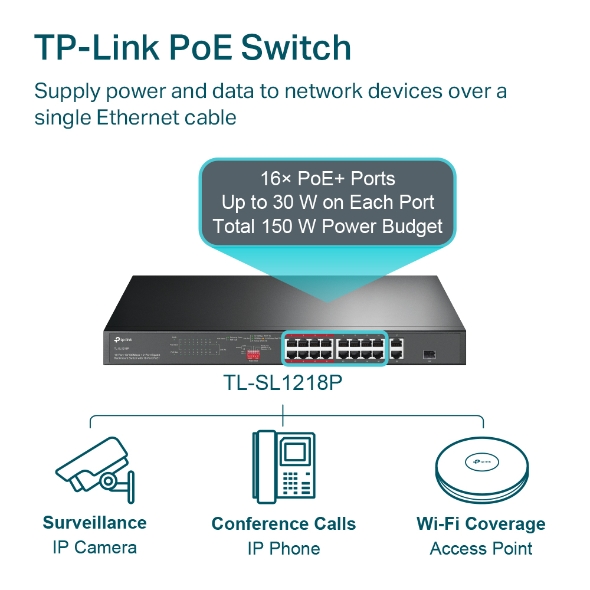

Dedicated 16-Port PoE+ Switch (150 W Budget) for Numerous Applications

In compliance with the 802.3af/at PoE+ standard, TL-SL1218P delivers up to 30 W per PoE port. With a total power budget of 150 W for 16 PoE+ ports, it has a wide range of applications, including surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

16× PoE+ Ports

Up to 30 W on Each Port

Total 150 W Power Budget

Ideal for IP Surveillance—Up to 250 m Transmission

With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Ideal for IP Surveillance—Higher Performance and Security

Priority Mode and Isolation Mode make surveillance smoother and safer.

Priority Mode

Button

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.

Isolation Mode

Button

One-Click Traffic Separation for Ports 1-16

With one click, Isolation Mode easily divides traffic for ports 1–16 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Intelligent Power Management to Prevent Power Overload

When your total power consumption exceeds 150 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Smooth HD Video Monitoring

2× gigabit RJ45 ports and 1× combo gigabit SFP slot ensure smooth streaming even when 16× HD IP cameras work simultaneously.

Durable Metal Casing with Fanless Design

The TL-SL1218P features a robust metal casing that enhances heat dissipation and ensures extended product longevity. Its fanless design reduces power consumption and enables it to work silently, making it the perfect choice for noise-sensitive environments.

Teknik Özellikler

Ek sürüm bilgisi için lütfen destek sayfasına gidin.

Destek

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. **The speed of the ports which are under extend mode will be downgraded to 10 Mbps. Actual transmission distance may vary from the quality of the cables.
