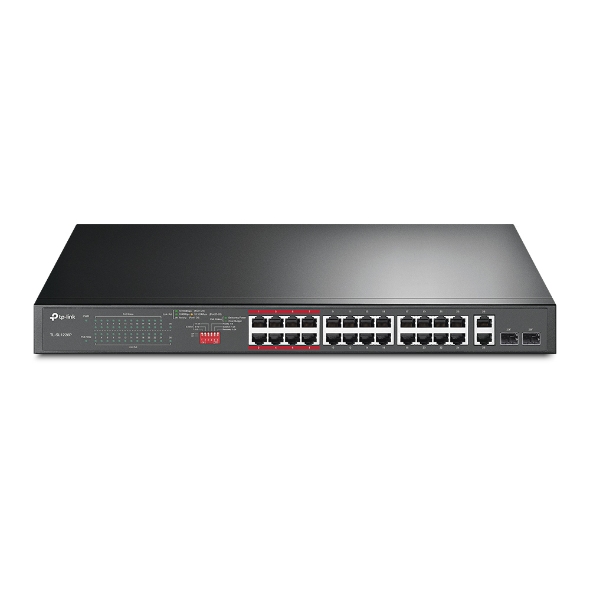

TP-Link TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.

High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports.*

Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system.

Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor.

Isolation Mode allows one-click client traffic separation for higher security and performance.

PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.

Plug and play, with no configuration and installation needed

Learn more about TP-Link PoE technology >

Introducing TP-Link PoE Switches

Genel Bakış

Transmission Distance up to

250 m**

: One-Click Traffic Separation

: Intelligent Power Management

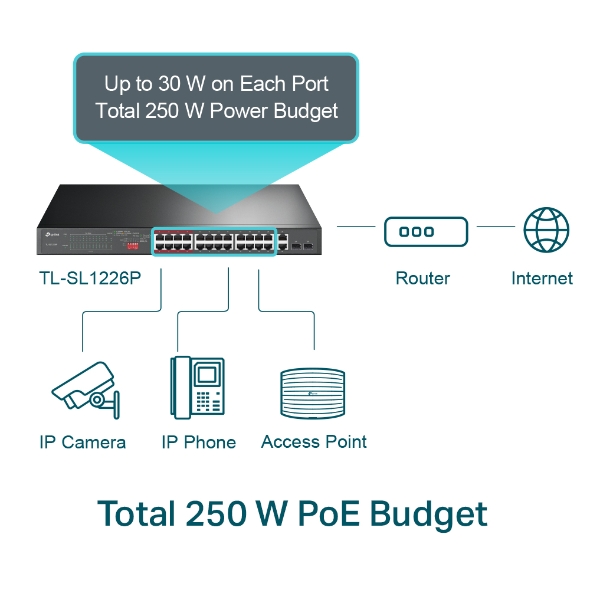

Dedicated 24-Port PoE+ Switch for Wide Range of Applications with 250 W PoE Budget

Compliance with the 802.3af/at PoE+ standard supports up to 30 W

on each PoE port. The total 250 W PoE power budget* for the 24×

PoE ports makes it has wide range of applications, such as

surveillance, offices, dormitories, and small businesses. It is

fully compatible with IP cameras, access points, IP phones,

computers, printers, and etc.

Up to 30 W on Each Port

Total 250 W Power Budget

Dedicated Design for IP Surveillance —Up to 250 m Transmission

With extend mode, the PoE transmission distance reaches up to

250 m*—perfect for IP Camera deployment in large areas.

*The speed of the ports in extend mode will downgrade to 10 Mbps. Actual transmission distance may vary due to cable quality.

Dedicated Design for IP Surveillance —Higher Performance and Security

Priority Mode and Isolation Mode make surveillance smoother and

safer.

Priority Mode

Button

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in

critical business areas is guaranteed by offering higher

priority options for ports 1–8 when one-touch Priority Mode

is on.

Isolation Mode

Button

One-Click Traffic Separation for Ports 1-24

With one click, Isolation Mode easily divides traffic for

ports 1–24 to avoid snooping and tampering. This enables the

switch to isolate broadcast storm, improving LAN security

and data transmission.

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices,

such as cameras and APs, when they fall offline or go

unresponsive, guaranteeing the stable operation of

PoE-connected devices, without need for manual monitoring and

restart.

Intelligent Power Management to Prevent Power Overload

When your total power consumption exceeds 250 W, Intelligent

Power Management automatically cuts lower priority ports’

power to ensure high-priority ports’ power supply. This

protects the device from power overload operation. It also

automatically detects the required PoE power for your device

and protects your non-PoE equipment from being damaged.

Smooth HD Video Monitoring

2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure

smooth streaming even when 24× HD IP cameras work

simultaneously.

Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design

ensure the wide operating temperature (0–50℃) with reliability.

Teknik Özellikler

24× PoE+ 10/100 Mbps RJ45 Ports

2× 10/100/1000 Mbps RJ45 Ports

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)

Standard: 802.3at/802.3af compliant

Compatible With IEEE 802.3at/af Compliant PDs

Extend Mode (Up to 250m PoE power supply and data transmission)

PoE Auto Recovery (Ports 1-24)

Mac Address Auto-Learning and Auto-Aging

Two mounting brackets and the fittings

Operating Temperature: 0–50 °C (32–122 °F)

Storage Temperature: -40–70 °C (-40–158 °F)

Operating Humidity: 10–90% non-condensing

Storage Humidity: 5–90% non-condensing

Ek sürüm bilgisi için lütfen destek sayfasına gidin.

Destek

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. **The speed of the ports which are under extend mode will be downgraded to 10 Mbps. Actual transmission distance may vary from the quality of the cables.
